SMART Washing Module

A compact washing module designed for space-constrained commercial kitchens. It fits into existing sink space and streamlines washing with less labor, less water, and less time.

LABOR COST
87% LOWER
$2,677 → $356 / month
WATER USE
76% LESS
2,354 L → 560 L / day
WASHING TIME
73% LESS
8 h → 2.1 h / day

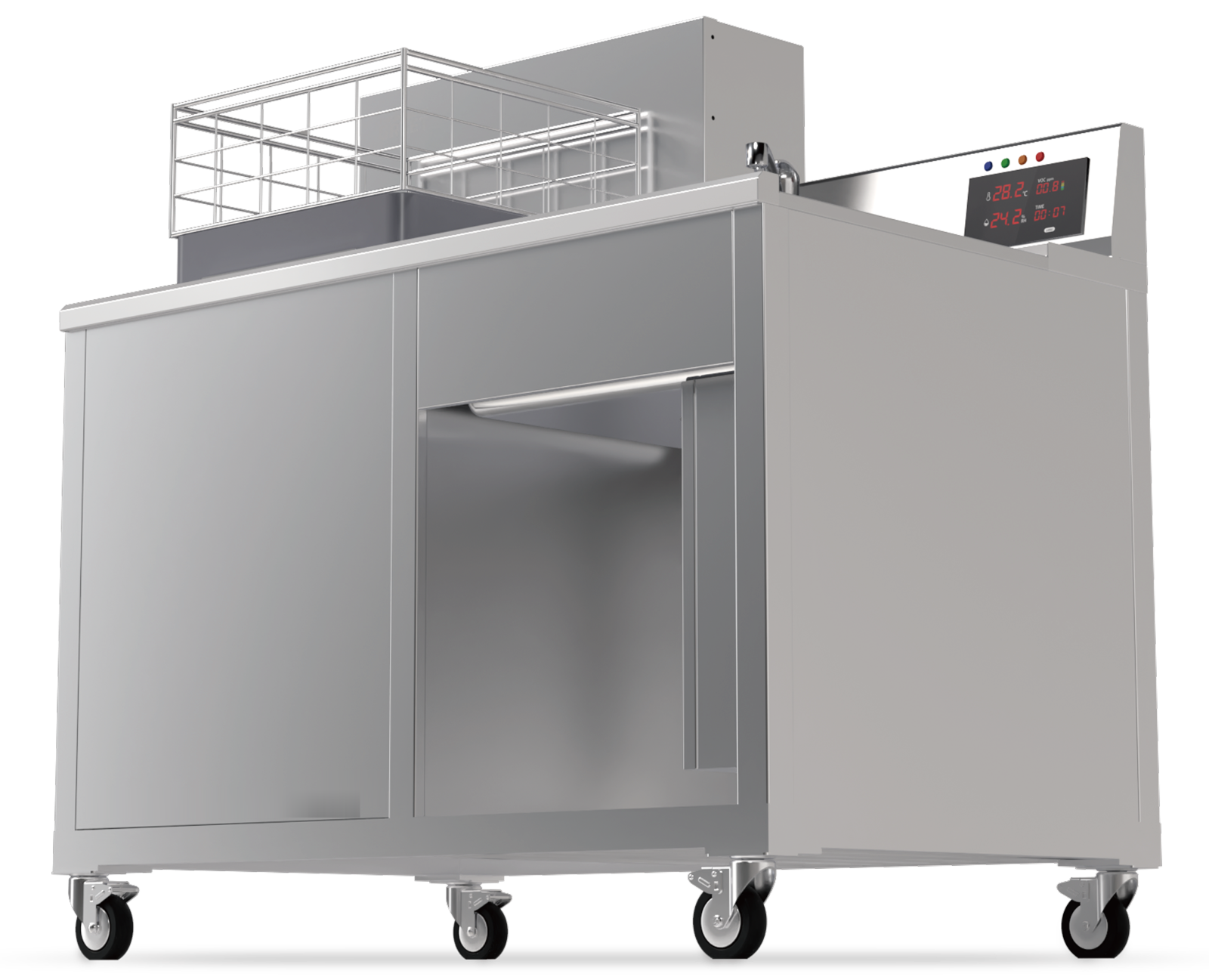

SMART Washing Module
SMART WASHING MODULE◆ ATP 6 RLU◆ RESIDUE TEST NEUTRAL◆ SOAK 55–60°C, 3–7 MIN◆ 1,340 × 840 × 1,300 mm · FIXED FOOTPRINT◆
SMART WASHING MODULE◆ ATP 6 RLU◆ RESIDUE TEST NEUTRAL◆ SOAK 55–60°C, 3–7 MIN◆ 1,340 × 840 × 1,300 mm · FIXED FOOTPRINT◆
SMART WASHING MODULE◆ ATP 6 RLU◆ RESIDUE TEST NEUTRAL◆ SOAK 55–60°C, 3–7 MIN◆ 1,340 × 840 × 1,300 mm · FIXED FOOTPRINT◆
SMART WASHING MODULE◆ ATP 6 RLU◆ RESIDUE TEST NEUTRAL◆ SOAK 55–60°C, 3–7 MIN◆ 1,340 × 840 × 1,300 mm · FIXED FOOTPRINT◆
01 — PRODUCT

Built for
Workflow.

Every kitchen is different, but what makes washing better never changes. SMART Washing Module is built to fit an existing sink space, reusing the water supply and drain already in place and combining the core washing functions into one unit — so even a tight kitchen gets a properly efficient washing setup.

01
Compact Design

One unit brings every core washing function together, so there are no separate machines to find room for.

02
Efficient Workflow

It works inside the washing area you already have, so none of your floor space goes to waste.

03
Simple Installation

It connects to the water supply and drain already in place, so there is almost nothing to build.

02 — THE RESULT

Less Labor.
Less Water.
Less Time.

An automated soak-and-flow cycle replaces manual scrubbing —
reducing water use, labor costs, and washing time while delivering a consistent, repeatable pre-wash process.

87%
Lower Labor Cost
$2,677 → $356 / month
76%
Less Water Used
2,354 L → 560 L / day
73%
Less Washing Time
8 h → 2.1 h / day
* Measured against the manual hand-washing process it replaces, under equivalent operating conditions.
03 — PROCESS

3 Simple Steps.
Consistent Results.

A simple three-step process takes repetitive manual work out of washing while keeping results consistent. No tedious hand-washing — used dishes go straight into the soaking basin. Less hands-on work. A smoother, more reliable kitchen workflow.

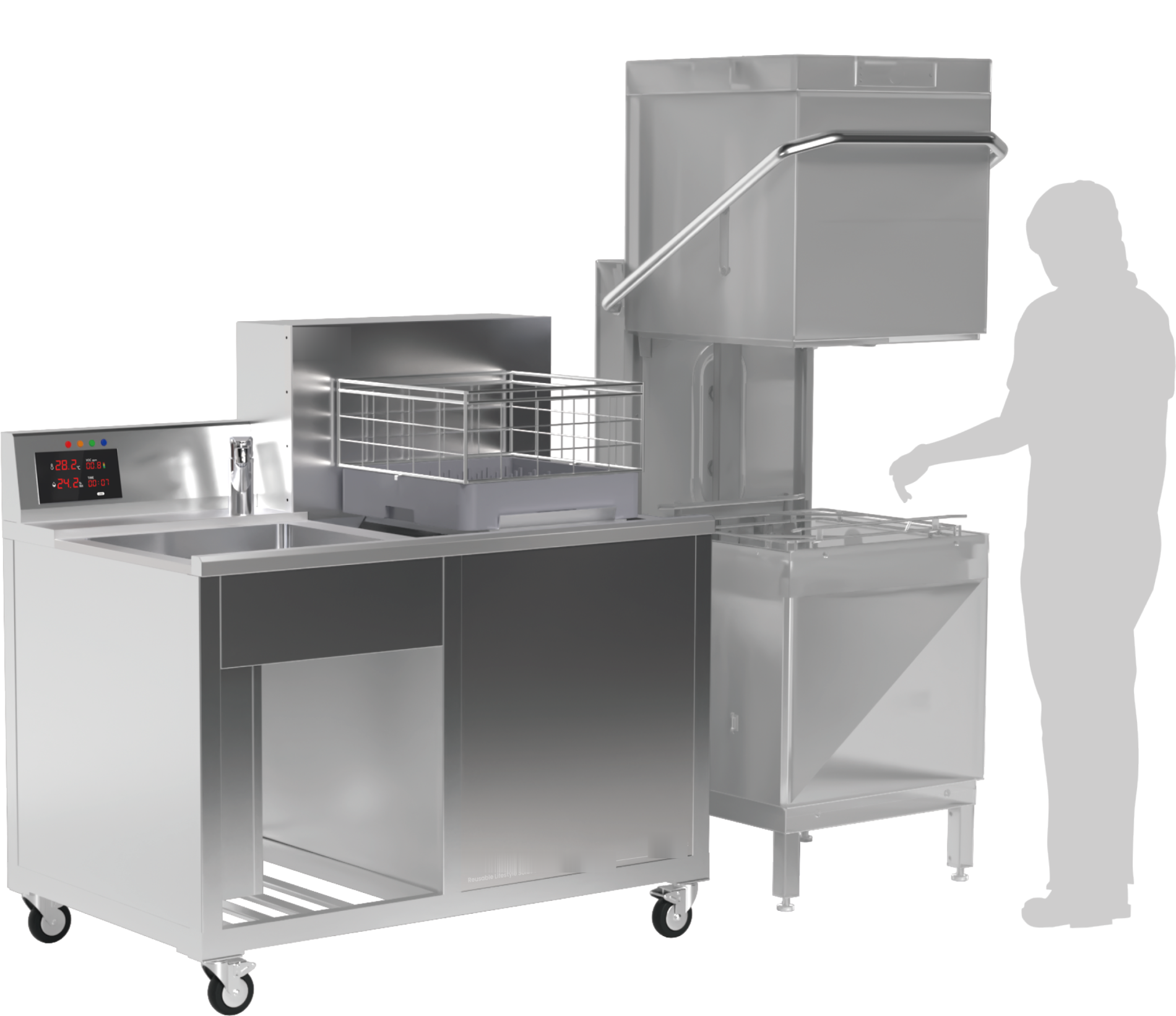

SMART Washing Module process — soak basin, lift rack and hood dishwasher, at human scale 1 2 3
1PRE-TREATMENT
Only when needed

Only when heavy grease or leftover food remains.
If soiling is light, skip it and go straight to soak.

2SOAK
Starting at just 3 minutes.
  • Put used tableware straight into the basin.
  • Soak at 55–60°C for 3–7 minutes, depending on how heavy the soiling is.
  • The rack rises automatically once soaking is complete.
3RINSE & WASH
High-pressure finish
  • Move the tableware to the washing rack.
  • A high-pressure wash finishes the job.

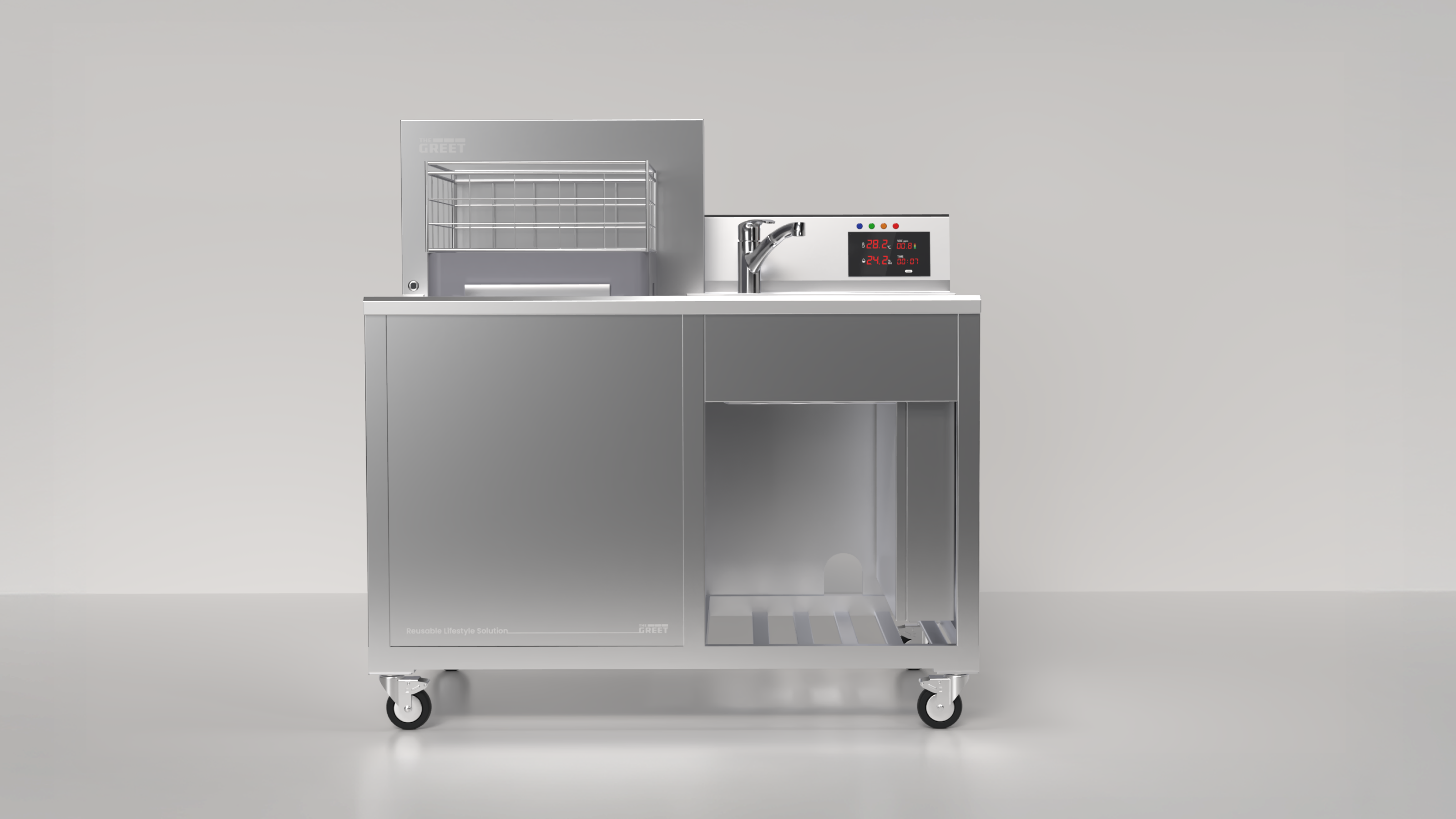

SMART Washing Module — front view
04 — PERFORMANCE

Reliable
Performance.

Washing performance is verified by ATP contamination testing and detergent residue testing — not just clean to the eye, but clean on the numbers.

ATP RESULT
6 RLU

MFDS standard: ≤ 200 RLU.

RESIDUE TEST
Neutral

pH neutral. No detergent residue detected after washing.

05 — SPECIFICATION

SPEC.

One compact footprint, designed to fit the sink space you already have.
{{ row.k }} {{ row.v }}

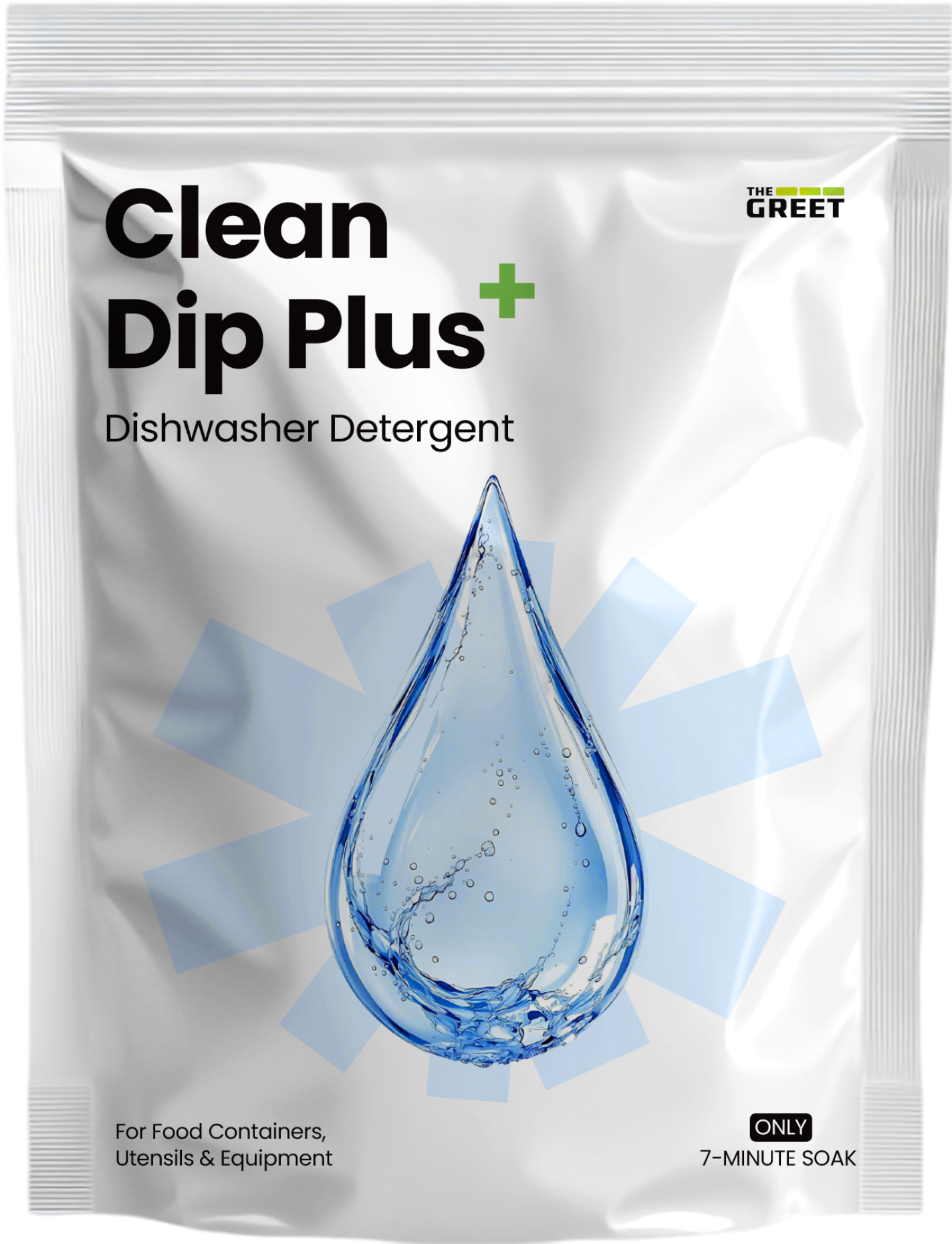

Clean Dip Plus dishwasher detergent
DEDICATED DETERGENT
Clean Dip Plus

Developed specifically for the SMART Washing Module and its operating conditions, Clean Dip Plus helps loosen stubborn, stuck-on residue in
just 3–7 minutes of soaking.

USE
Pre-soak agent
CONCENTRATION
0.5–1.0%
DAILY USE
700 g per day
WATER TEMP.
55–65°C
TYPE
Mildly alkaline · food-contact grade
SHELF LIFE
3 years from manufacture

Simpler Washing.
Better Results.

SMART Washing Module puts fast, consistent washing performance into one compact unit — replacing the hand-washing routine and making the daily kitchen run smoother.

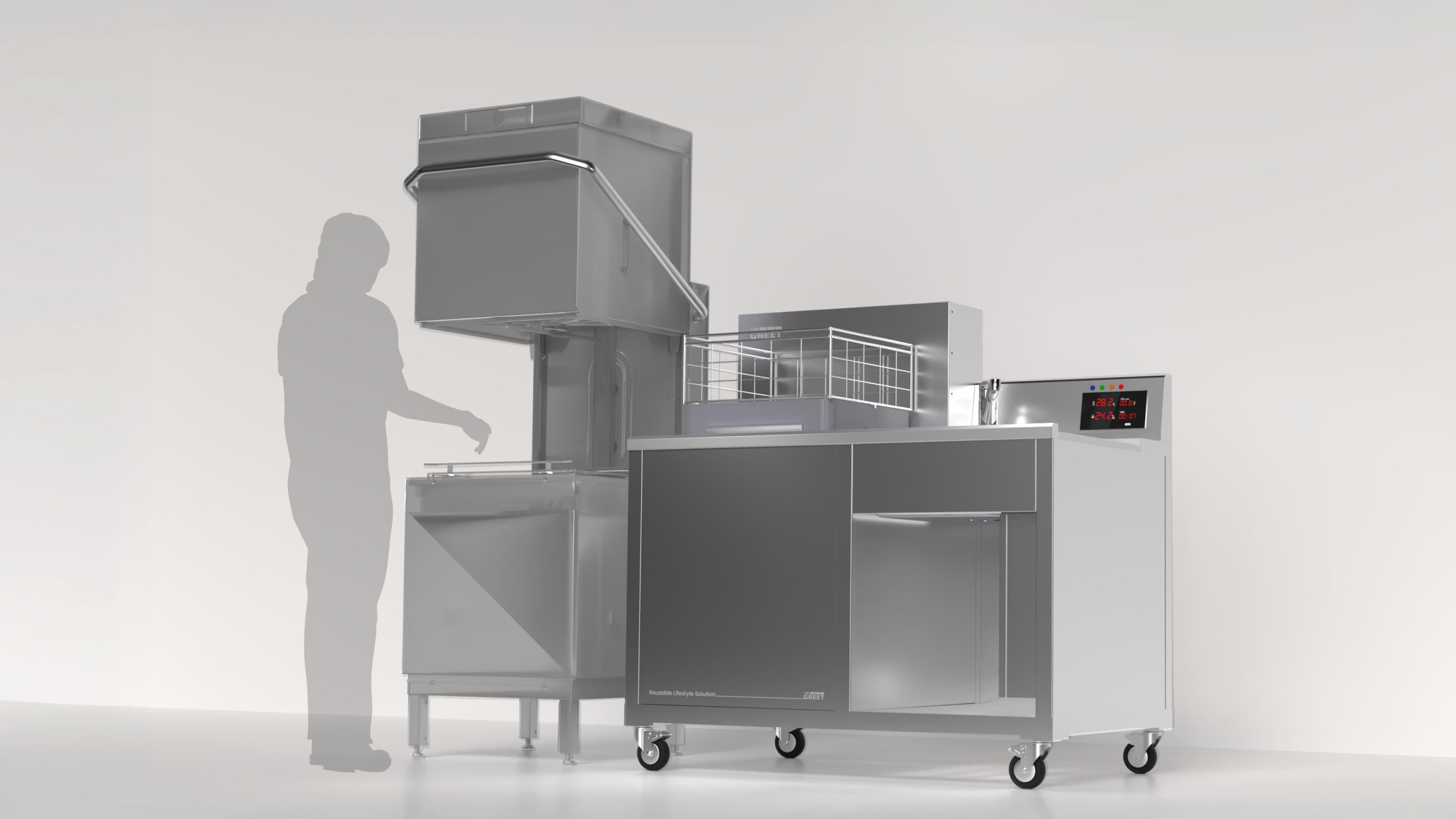

SMART Washing Module at human scale
06 — FAQ

Questions we get
before every install

If yours isn't here, call us — we'll talk through your kitchen directly.

You Can it be installed in an existing kitchen?
ECIS Yes. Its compact, modular design fits into existing sink space, allowing installation without expanding the kitchen or requiring major renovations.
You Do dishes need to be hand-washed first?
ECIS No. Used dishes can go straight into the soaking basin without hand-washing. A 3–7 minute soak at 55–60°C helps loosen stubborn, stuck-on residue.
You How does the washing process work?
ECIS The process follows four simple steps: Setup → Detergent → Soak → Rinse & Wash. Once soaking is complete, the rack automatically lifts, and the existing dishwasher handles the final washing and rinsing.
You Do staff need to monitor the soaking process?
ECIS No. Simply set the timer, and the module runs for the selected soaking time. When the cycle is complete, the rack automatically lifts, freeing staff to focus on other tasks in the meantime.
You Can I use any detergent?
ECIS No. The SMART Washing Module is designed to be used with Clean Dip Plus, its dedicated detergent formulated for the module’s operating temperature and washing process.
You What types of kitchens is it designed for?
ECIS It is ideal for commercial kitchens such as cafés and restaurants that handle high volumes of reusable food-contact items but have limited space and staff.
You Is a door-type dishwasher included with the SMART Washing Module?
ECIS No. The SMART Washing Module is designed to work alongside a door-type dishwasher. If you already have one, you can continue using your existing unit. If you don’t, please contact us about purchasing one together with the module.
07 — CONTACT

Let’s find the right fit
for your kitchen.

Tell us about your kitchen. We’ll help you find the right setup —
from installation to Clean Dip Plus supply.

TELEPHONE
+82-70-4919-0158
Weekdays 09:00–18:00 KST
EMAIL
contact@ecis.ai
We reply within three business days
OFFICE
68-20, Seori-ro, Idong-eup,
Cheoin-gu, Yongin-si,
Gyeonggi-do, Republic of Korea
Compact by design —
1,340 × 840 × 1,300 mm
No kitchen extension and no new plumbing work
Installs into the sink space you already have
